Analysis

This model is designed for testing systems with finite and observable behavior.

The model applies to the following classes of systems:

  • FE-component of an application, where BE is moved outside the AUT.
  • Full-stack application, where interactions with external services and system services are moved outside.
  • Web-service, where user events are replaced with standard API calls, and the Monitor becomes a baseline of responses from methods.
  • Util-library — in case of isolation, only function calls and baseline results remain.

However, its primary focus is on systems with finite and observable behavior.

Testing Boundaries​

Important fact

Testing boundaries are defined by clients of the component being tested.

Let’s examine this in more detail with examples.

FE-component​

Clients:

  • System user:
    • Input: interaction events.
    • Output: visual UI representation.
  • BE and external services:
    • Input: queries from AUT.
    • Output: data returned by AUT.

Util-library​

Clients:

  • API user:
    • Input: method calls.
    • Output: returned values.

Changing the stack does not alter the model — only the location of testing boundaries changes.

Testing Flexibility​

Take a web service as an example. When testing the API, a common question arises: what to do with the database? In the current model, this reduces to a simple question — *"Should the database be part of the AUT or lie on the testing boundaries?"

  • If the database becomes part of the AUT:
    • Regression protection increases and resilience to refactoring improves.
    • The database must become internal state of the AUT.
  • If the database lies outside the AUT:
    • Regression protection decreases, but performance increases.
    • Database interaction occurs via contract through an external layer.

The described testing model does not go into specifics — it outlines possible options and helps assess their consequences.

Regression Protection​

Properties​

  • Non-deterministic operations are localized in the external request layer.
  • Core logic is concentrated inside the AUT.
  • Observable behavior is captured through:
    • UI baselines;
    • recorded interaction commands with external systems.

Limitations​

The model is not intended to detect discrepancies between the AUT and real external systems.

It verifies the correctness of AUT’s interaction with the model of the external world, defined by interface contracts.

Refactoring Resilience​

The solution is resilient to changes in the implementation details of the AUT, except for:

  • Changes in the user interface implementation.
  • Changes in contracts for interaction with the external environment.

UI changes are compensated by using semantic selectors.

External contract changes are partially addressed using special patterns: adapter, facade, and others.

Sources of fragility are localized at system boundaries.

Maintainability​

Properties​

  • Behavior verification is fully automated.
  • Tests describe only input data and scenarios.
  • Architectural requirement: explicit or implicit separation of input and output ports.

Acceptable integration approaches:

  • Explicit I/O separation via dependency inversion.
  • Implicit behavior substitution via side effects (monkey-patching).

Limitations​

The majority of test code is devoted to:

  • describing user scenarios;
  • describing models of external APIs.

As external contracts grow in complexity, test complexity increases.

tip

For this reason, special patterns for working with this type of data are described in this guide.

Performance​

Properties​

  • No external state.
  • Tests can be executed in parallel.

Limitations​

Increased coverage leads to longer test execution time.

Conclusion​

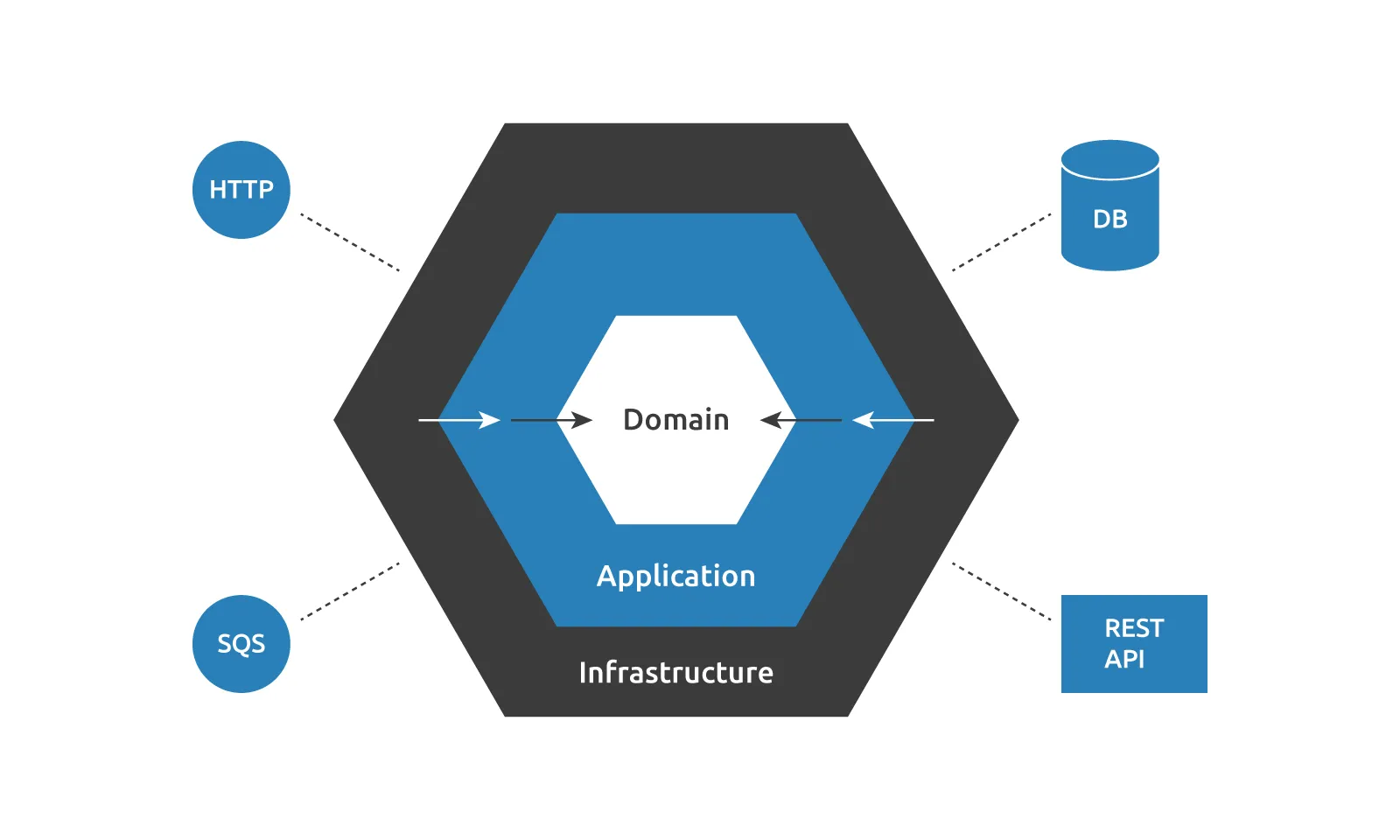

The described testing model represents the tested application in a familiar hexagonal architecture:

#

  • The outer layers contain a thin interaction layer with the application's external environment: databases, devices, web services, Runtime API, etc.
  • The core includes everything else.

Specific categories of external ports are identified: incoming data and outgoing side effects. Thus, the core becomes a function of incoming data, with results being side effects on the external world.

Thanks to the fp-like modeling, this structure fits well with testing — this is not just a coincidence, but a consequence of a simple fact: tests are another user of the system. The nuance is that this user interacts with the tested application not in the target environment, but in an isolated one.

Isolation provides:

  • determinism;
  • manageability;
  • reproducibility;
  • high execution speed.

Model limitations:

  • Reduced regression protection compared to e2e tests;
  • Need to describe the external environment within tests.

The model is a compromise solution for testing system components in isolation, when using e2e testing is not practical.
